Die Size Estimation for a Processor-Based SoC in 22 nm Technology: A Case Study
Die-size estimation is one of the first architectural exercises in an SoC project — long before RTL and physical design are complete, architects need to know whether the proposed processor, memories, analog blocks and peripherals can fit within a practical silicon area. Using an illustrative 22 nm RISC-V-based subsystem, this case study walks from block-level area assumptions through physical-design overhead to a final die size, showing why 1.395 mm² of functional blocks becomes a ~3.24 mm² die.
Why Die-Size Estimation Comes First
Die-size estimation is one of the first architectural exercises in an SoC project. Before RTL and physical design are complete, architects need to understand whether the proposed processor, memories, analog blocks and peripherals can fit within a practical silicon area. Consider an imaginary 22 nm processor-based subsystem containing a 32-bit RISC-V processor, Analog Front End (AFE), instruction and data memories, packet memory, Flash interface, Direct Memory Access (DMA), Universal Asynchronous Receiver-Transmitter (UART) and Serial Peripheral Interface (SPI).
Example SoC Architecture
The subsystem is assumed to contain:
Illustrative Area Calculation
Assuming an illustrative 22 nm SRAM density of ~0.20 mm²/Mbit:
| Block | Approx. Area |
|---|---|
| RISC-V processor | 0.100 mm² |
| Instruction SRAM — 256 KB | 0.410 mm² |
| Data SRAM — 128 KB | 0.205 mm² |
| Packet SRAM — 128 KB | 0.205 mm² |
| AFE + ADC | 0.300 mm² |
| DMA + peripherals + bus/support | 0.175 mm² |
| Total functional area | 1.395 mm² |
From Functional Area to Die Area
This is not yet the die size. Physical implementation requires additional area for placement and routing, clock-tree synthesis, power distribution, memory-macro spacing, analog isolation, Design-for-Test (DFT) and physical-design margins.

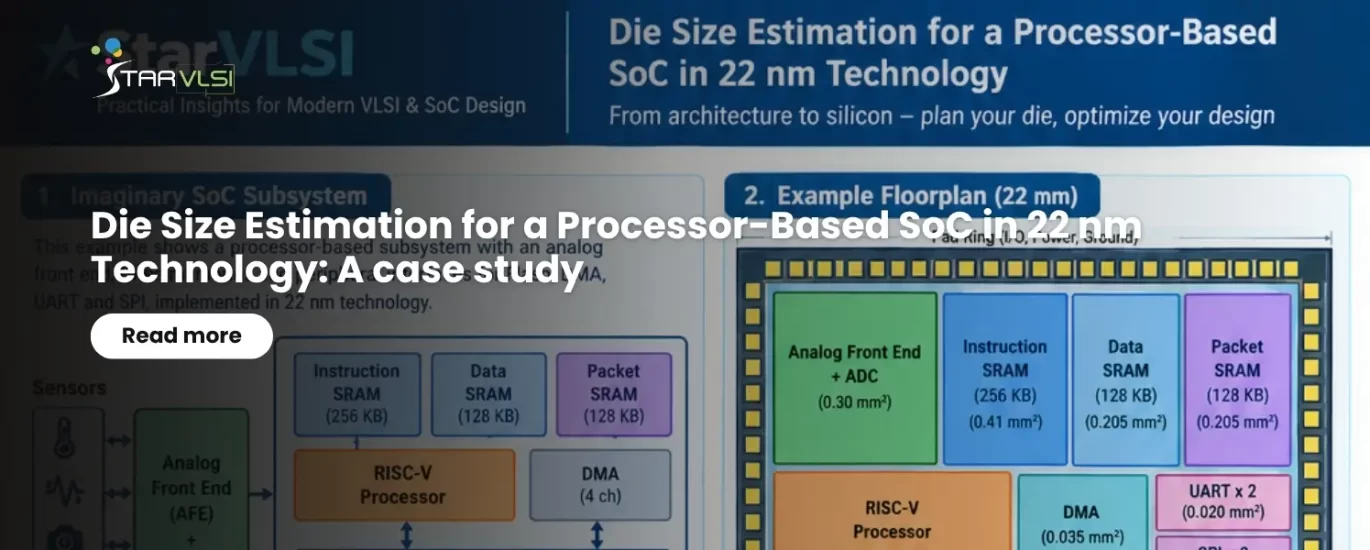

Assuming approximately 25% physical-design overhead: Core requirement ≈ 1.395 × 1.25 = 1.74 mm². The final die must additionally accommodate the I/O and power/ground pad ring, Electrostatic Discharge (ESD) structures, corner cells and chip-level physical constraints. An illustrative floorplan could therefore target approximately 1.8 mm × 1.8 mm = 3.24 mm² die area. On the 22 nm floorplan, it is obvious that the functional area is not the same as die area.
What Die Size Is Influenced By
Memory and Analog Placement Have Outsized Impact
Memory configuration can have a particularly strong influence. Increasing instruction memory from 256 KB to 512 KB, for example, adds approximately 0.41 mm² using the assumed SRAM density and may also require a different floorplan. Similarly, the Analog Front End (AFE) cannot simply be placed next to noisy digital logic — guard rings, dedicated supplies, isolation and routing constraints can significantly influence the physical dimensions.
Die-Size Estimation Through the SoC Design Flow
At the architecture stage, historical data provides an initial estimate. RTL synthesis then replaces assumptions with actual standard-cell and memory areas. Floorplanning exposes macro-placement and routing constraints, while physical design provides increasingly accurate estimates of utilization, congestion and power-grid requirements. Modern AI-assisted SoC design can further enhance this process by learning from previous RTL, synthesis, floorplan and signoff data and predicting the area impact of architectural changes.
